SPECIALLY MADE FOR RIGOROUS CORE CUTTING

Manual Core Saws

A piece of machinery that has a long history of durability across many a mining or exploration site across the world. Ideal for sites with low-volume core cutting requirements.

Variants
  • Series 1 Electric Single Phase Core Saw - Folding Leg Stand
  • Series 2 Electric Single Phase Core Saw - Fixed Solid Leg
  • Series 3 Electric Single Phase Core Saw - Fixed Solid Leg
Quantity

Product Features

Tough and precise

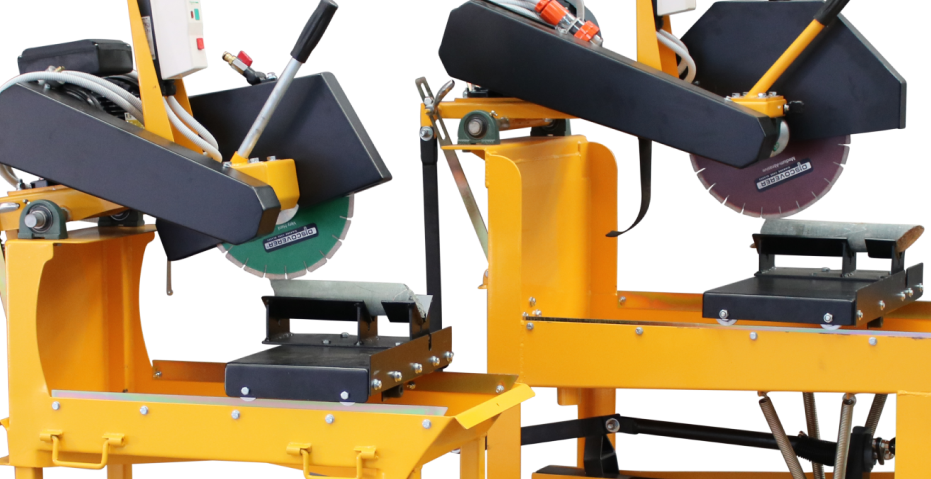

The saws feature a cutting deck trolley with heavy-duty aluminum and tilt-lock wheels, and a spring-loaded cutting head actioned by foot pedal or cutting handle, which all lead to better-quality cutting.

Built with operator safety and comfort in mind

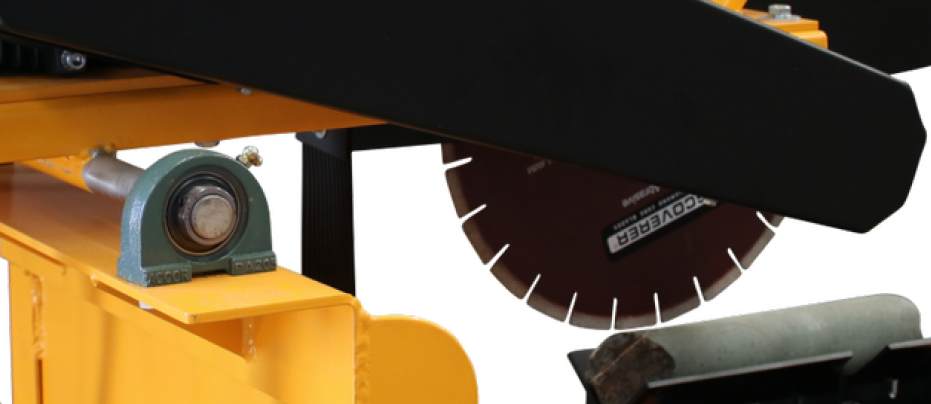

A fully protected blade support shaft increases user safety, while its proper water return channels give a dry and clean area, improving comfort.

image 15
image 16

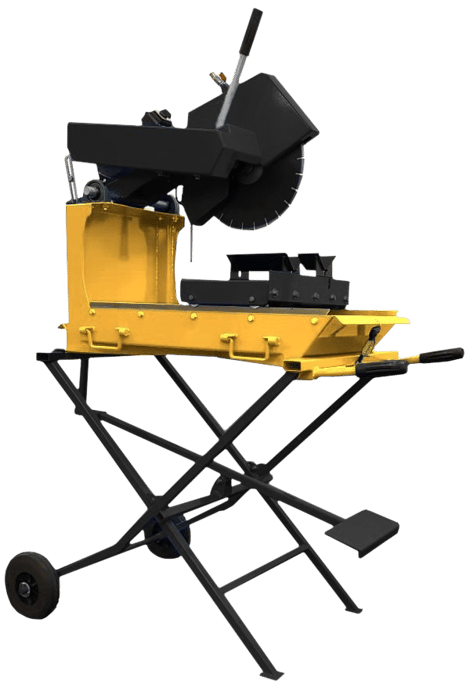

Discoverer® Manual Core Saw Series 1
Discoverer® Manual Core Saw Series 1

Has detachable folding legs and built-in handles at the sides for portability. Built for teams that move around.

Specifications
  • 1530H x 550W x 980L mm
  • 93 kg
  • Blade Capacity: 300-350 mm
  • Max Cutting Depth: 110 mm
  • Max Cutting Length: 420 mm
  • Tool Speed RPM: 2800 min
Discoverer® Manual Core Saw Series 2
Discoverer® Manual Core Saw Series 2

Identical to the Series 1 but with fixed solid legs. A longer-term saw for small exploration programs.

Specifications
  • 1530H x 550W x 980L mm
  • 93 kg
  • Blade Capacity: 300-350 mm
  • Max Cutting Depth: 110 mm
  • Max Cutting Length: 420 mm
  • Tool Speed RPM: 2800 min

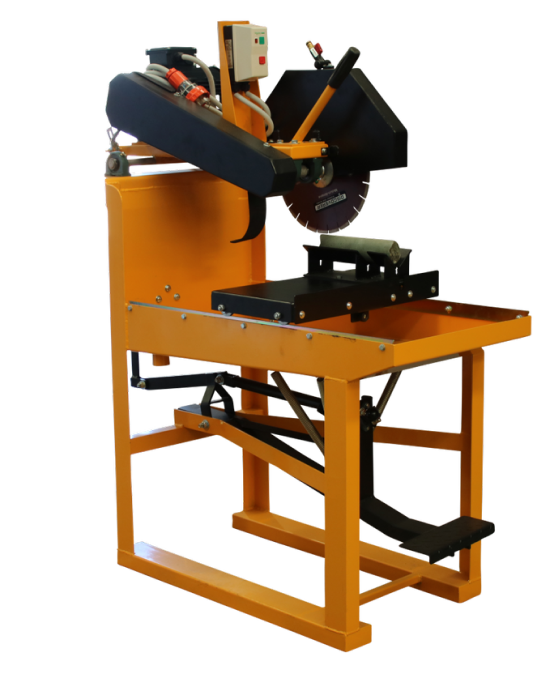

Discoverer® Manual Core Saw Series 3
Discoverer® Manual Core Saw Series 3

The biggest and most powerful saw in the range. Made for projects that require extended periods of core cutting.

Specifications
  • 1540H x 570W x 1350L mm
  • 140 kg
  • Blade Capacity: 350-500 mm
  • Max Cutting Depth: 210 mm
  • Max Cutting Length: 490 mm
  • Tool Speed RPM: 2200 min
discoverer® manual core saws 1
discoverer® manual core saws 2
discoverer® manual core saws 3
discoverer® manual core saws 4
discoverer® manual core saws 5
discoverer® manual core saws 6
